Step 1:

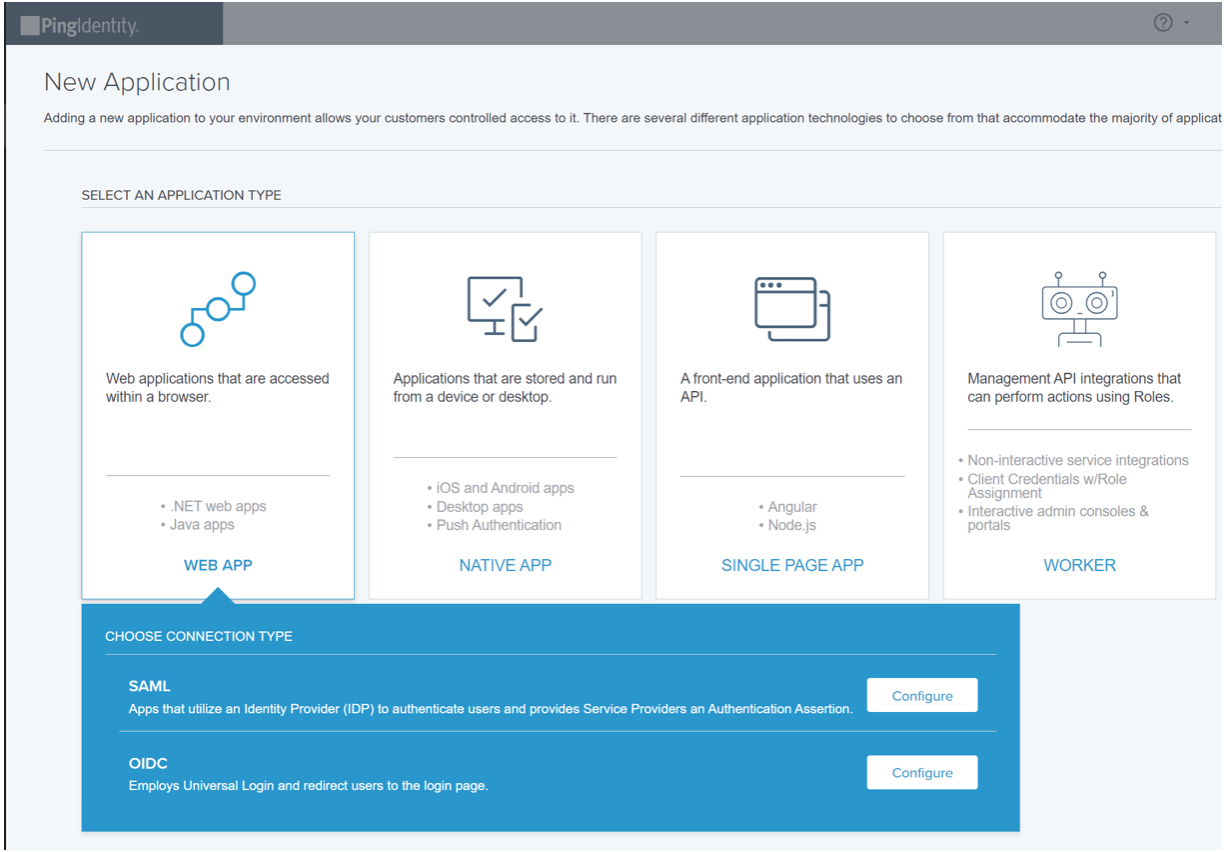

Create a new SAML Application in your Ping Identity tenant, by going to Connections → Applications, then click Add Application. Choose Web App and SAML, then click Configure.
Step 2:
On the Profile screen use these settings:
Application name: FreeBusy
Application icon: download here
Step 3:
On the Configure SAML Connection screen select Import From URL and enter https://freebusy.io/saml as the URL. Then click Import.
You should have the following metadata:
- ACS URLS:https://freebusy.io/saml/Acs
- Entity ID:https://freebusy.io/saml/acs
- SLO Endpoint:https://freebusy.io/saml/acs
- SLO Response Endpoint:https://freebusy.io/saml/acs
- SLO Binding: HTTP POST
Subject NameID Format: urn:oasis:names:tc:SAML:2.0:nameid-format:persistent
Assertion validity duration: 300 (or your organization’s standard)
Step 4:
On the “Attribute Mapping” screen enter the following attributes
- Pingone User Attribute: Email Address
- Application Attribute: saml_subject
- Pingone User Attribute: Email Address
- Application Attribute: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
- Pingone User Attribute: Given Name
- Application Attribute: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname
- Pingone User Attribute: Family Name
- Application Attribute: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname

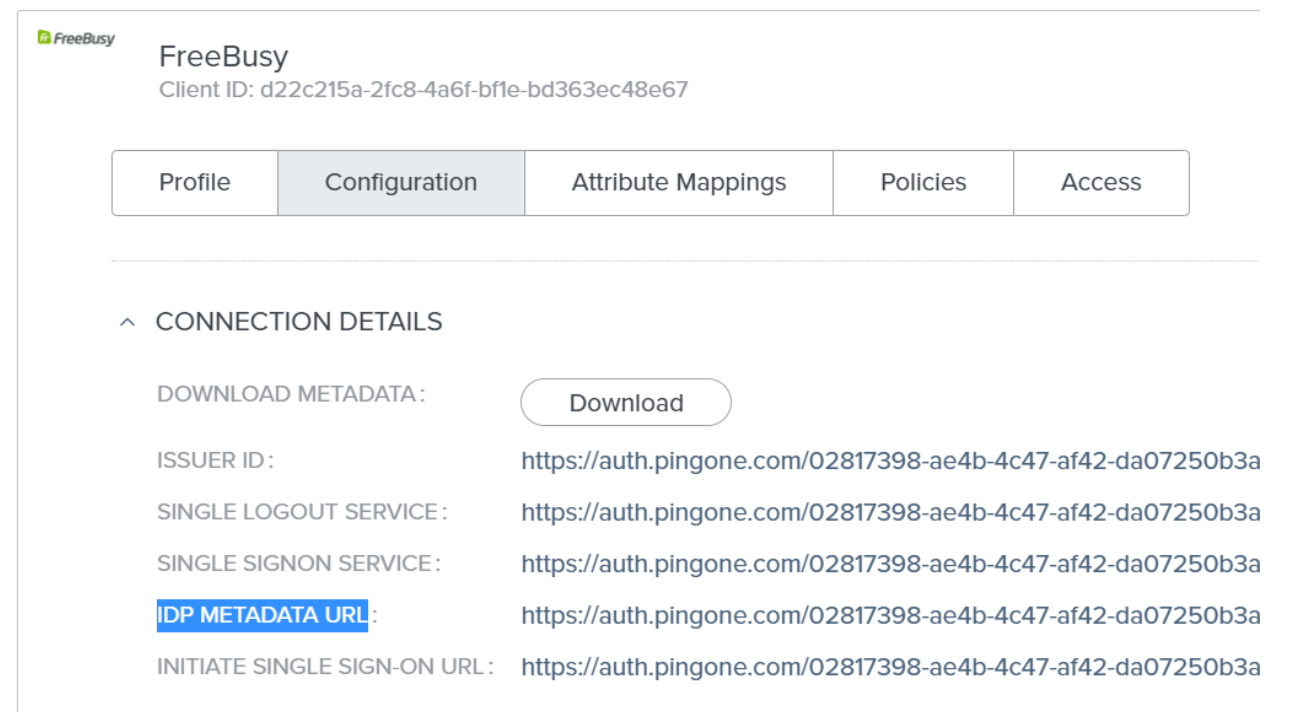

2. Once you create the Ping Identity application with the above settings, view the application and from the Configuration send to us at [email protected] the IDP Metadata URL:
You can also refer to Ping Identity’s documentation:
